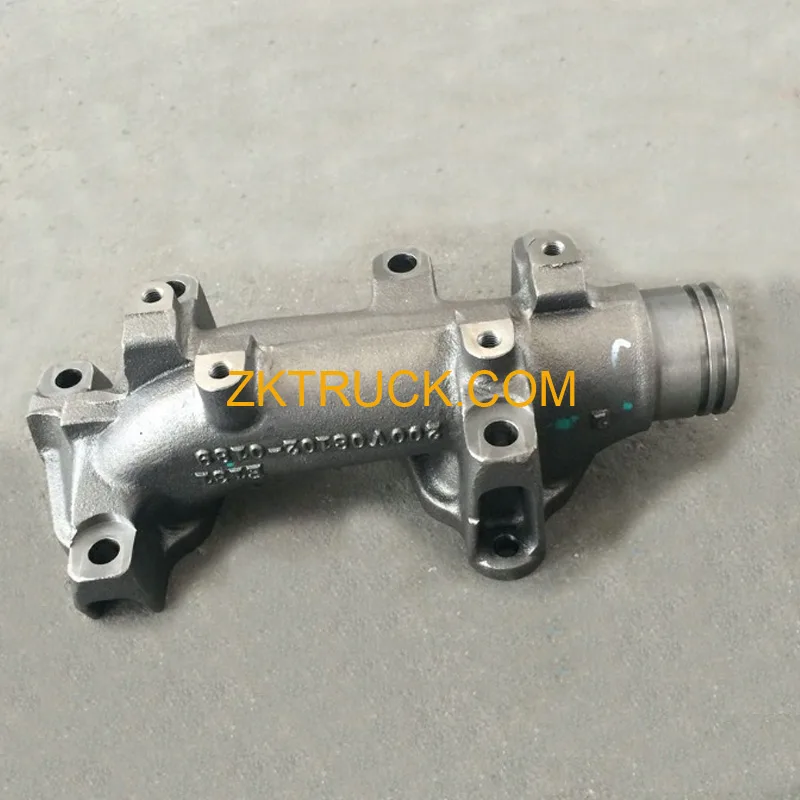

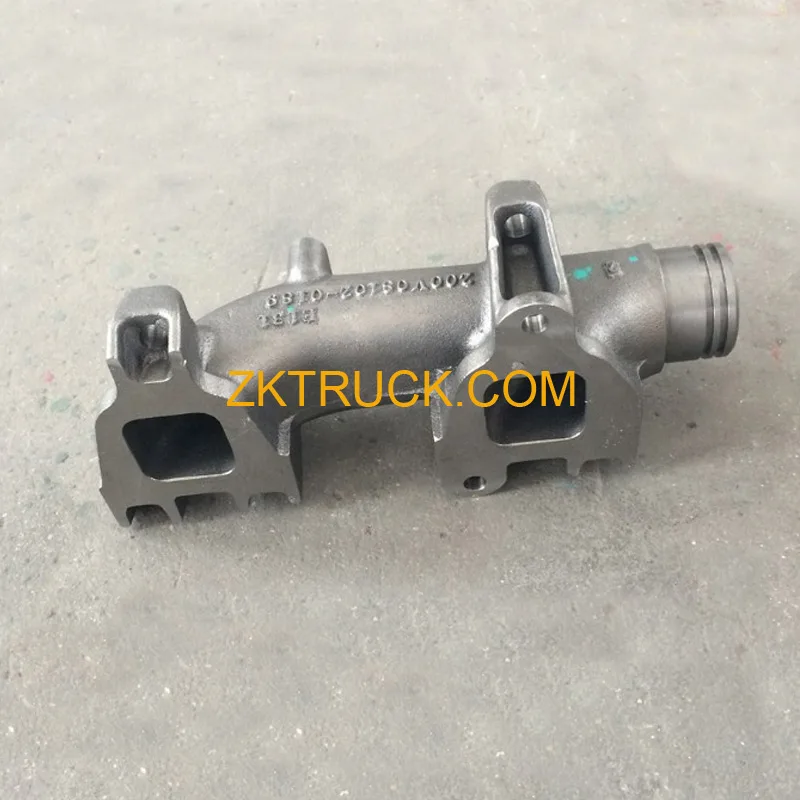

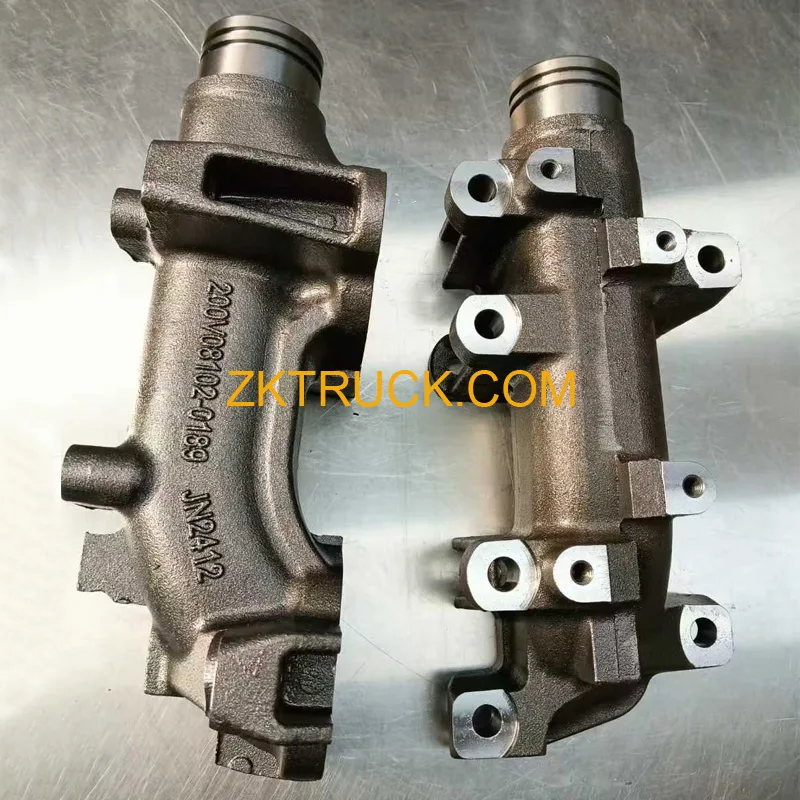

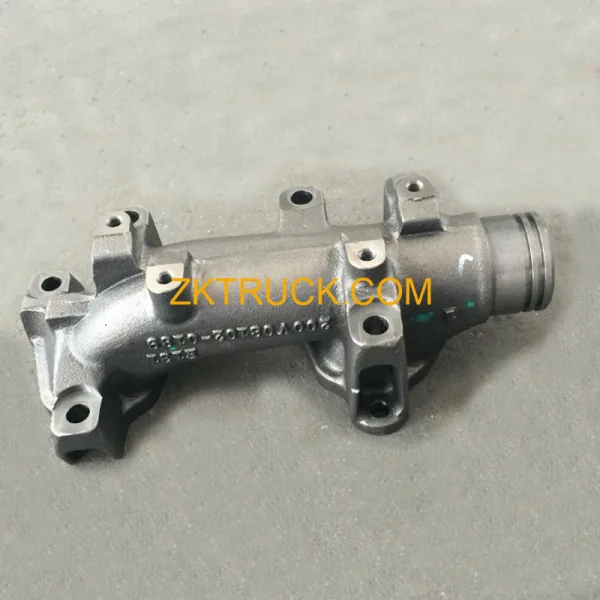

SINOTRUK MAN exhaust manifold 200V08102-0189

Description

What is the MAN exhaust manifold 200V08102-0189?

The exhaust manifold 200V08102-0189 is an important component of the engine system of heavy trucks for discharging exhaust gases. It is responsible for collecting the exhaust gases from each cylinder of the engine and guiding them into the exhaust pipes and other components of the exhaust system. Now let’s introduce its functions in detail.

1. Exhaust gas collection: The exhaust gases from each cylinder of the engine are collected and guided in an orderly manner to the turbocharger or exhaust pipes and other components of the exhaust system. This ensures that the exhaust gases can be smoothly discharged from the engine compartment and maintains the normal working cycle of the engine.
2. Reducing exhaust noise: Reducing the noise generated when the exhaust gases are discharged, lowering the overall noise of the engine. It can play a buffering and sound-dampening role to a certain extent.
3. Heat management: The reasonable design of the shape, length and diameter of the manifold enables the exhaust gases from each cylinder to be evenly mixed and flow within the manifold, reducing heat emissions and overall improving the performance and fuel economy of the engine.

The material of the exhaust manifold 200V08102-0189:

It is generally made of cast iron or stainless steel. Cast iron has good wear resistance, corrosion resistance and high-temperature resistance, and has a relatively low cost, which can withstand the high temperature and pressure of the exhaust gas emitted by the engine. Stainless steel has higher strength, corrosion resistance and oxidation resistance, and is relatively lightweight, which helps improve the performance and service life of the exhaust system, but it also has a relatively higher cost.

Common faults and causes analysis of the exhaust manifold 200V08102-0189:

Cracking: Due to long-term exposure to hot exhaust gas from the engine, repeated impact from high-temperature exhaust, and long-term vehicle vibration, cracking is likely to occur in weak areas. Especially at the bends, welds, or areas with concentrated stress.

Leaking: Leaking can occur due to damaged gaskets, loose bolts, or cracks in the exhaust manifold itself. Gaskets will age, harden, or be damaged over time, losing their sealing function; bolts may loosen under vibration, causing poor sealing at the connection points of the manifold; and cracks in the manifold will directly lead to exhaust gas leakage.

Blockage: After long-term use, carbon deposits, rust, and other impurities will accumulate. Yearly accumulation will narrow or even block the passage, affecting the normal exhaust discharge. If the engine combustion is incomplete, the situation of carbon deposits will be more severe.

How to maintain and service the exhaust manifold 200V08102-0189:

• Regular inspection: Regularly inspect the exhaust manifold for any cracks, deformations, or air leaks. Also, check if the connecting bolts are loose. If they are, tighten them promptly. Confirm if the sealing gaskets have any signs of aging.
• Cleaning and maintenance: During vehicle maintenance, use a dedicated cleaner to clean the exhaust manifold, removing carbon deposits and dirt inside to keep the passage of the manifold unobstructed. However, be careful not to use overly sharp tools to avoid scratching the inner wall of the manifold.
• Pay attention to driving habits: Avoid prolonged high-speed driving, sudden acceleration, and sudden braking, as these can cause thermal shock and mechanical stress on the exhaust manifold. Also, try to avoid driving in harsh road conditions to reduce the impact of vibrations on the exhaust manifold.
• Repair and replacement: Replace it immediately if there are cracks. Regularly check the condition of the gaskets and bolts, and repair them promptly if there are any problems.

The working condition of the exhaust manifold 200V08102-0189 directly affects the performance of the entire engine and the emission indicators. Drivers must perform regular inspections. This not only improves the overall efficiency of the engine but also significantly reduces maintenance costs. if you have questiones about engine system exhaust manifold 200V08102-0189, please don’t hesitate to contact us.
