HOWO Engine head gasket VG1500040049

Description

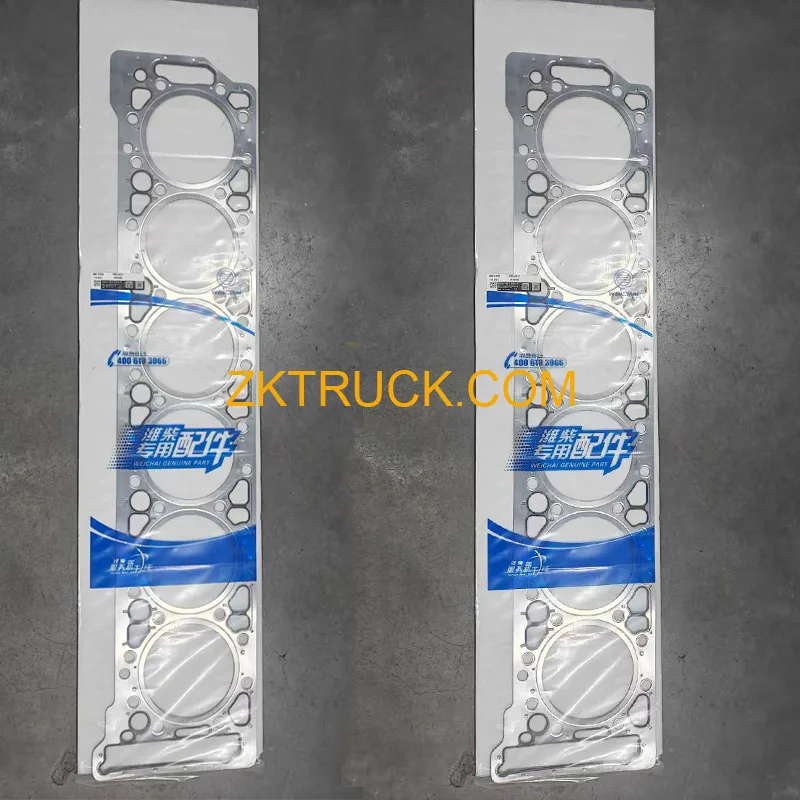

HOWO truck engine WD615 engine head gasket VG1500040049 introduce:

The function of HOWO truck engine WD615 engine head gasket VG1500040049:

The cylinder head gasket VG1500040049 is a crucial elastic sealing element installed at the connection point between the cylinder block and the cylinder head of the HOWO truck WD615 engine system. Its main function is to ensure the sealing performance between the cylinder block and the cylinder head, effectively preventing the occurrence of water leakage, air leakage, and oil leakage, etc. Once the cylinder head gasket is damaged, it will lead to a decline in engine performance, insufficient power, and even more serious mechanical failures.

The type and material of the head gasket VG1500040049 for the WD615 engine of HOWO truck parts:

1. Metal asbestos material: This type of material is based on asbestos as the main component, with iron or copper sheets covering the outside. Some products also adopt a woven steel wire reinforced structure. Its advantage is that the cost is relatively low, but the strength is relatively weak. Moreover, asbestos is a harmful material, and long-term use may pose a threat to human health. Therefore, it is not recommended to use. Such heavy-duty truck parts made of this material have gradually faded out of the historical stage.
2. Metal gasket: This type of gasket is made of a single piece of steel plate. There are elastic raised patterns at the sealing area, which rely on these raised patterns and elastic sealing glue to achieve sealing. This material has high strength and good sealing effect, but the cost is relatively high. With the advancement of technology and economic development, it has been gradually accepted by engine maintenance personnel.

Common Fault Analysis of WD615 Engine Head Gasket VG1500040049:

The common faults of WD615 engine cylinder head gasket are usually caused by the engine operating at high temperature for a long time. For instance, problems such as cooling system failure, water pump damage, radiator blockage or dirtiness, insufficient coolant, or poor coolant circulation can all lead to engine overheating. Eventually, this may result in uneven pressure distribution at the interface between the cylinder block and the cylinder head, causing the cylinder head gasket to be damaged due to high temperature and high pressure, thereby affecting the normal operation of the engine.

Maintenance suggestions for the HOWO truck WD615 engine head gasket VG1500040049:

Under normal driving conditions of heavy trucks, the replacement cycle of the cylinder head gasket VG1500040049 is generally around 100,000 kilometers. However, the specific replacement cycle also depends on the driving environment of the truck, the driving habits of the driver, and the daily maintenance status. Generally, it is recommended that the owner regularly check the cylinder head gasket of the engine. If any damage or aging is found, it is recommended to replace it in time. When replacing, special attention should be paid to the material matching between the cylinder block and the cylinder head gasket. Installation should be carried out strictly in accordance with the specifications to avoid secondary faults caused by improper installation.

ZK truck company is a supporting manufacturer with 20 years of experience in heavy truck parts. It specializes in manufacturing cylinder head gaskets for engines and provides supporting services for many well-known truck brands such as Sinotruk, SHACMAN TRUCK Heavy Truck, FAW truck, and FOTON truck. The products are of complete varieties, stable quality, and comply with national standards. We are looking forward to communicating with you.
We offer professional technical guidance for installation services. We can provide free 7×24-hour service. If you have any questions about the clutch pressure plate, please do not hesitate to contact us. We can provide the best service for all our customers.
