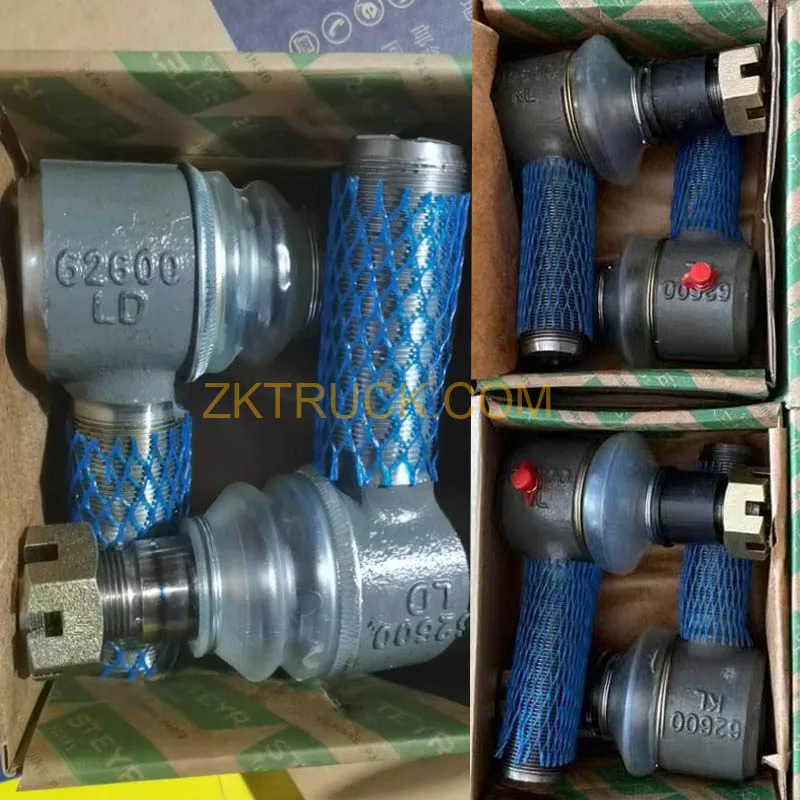

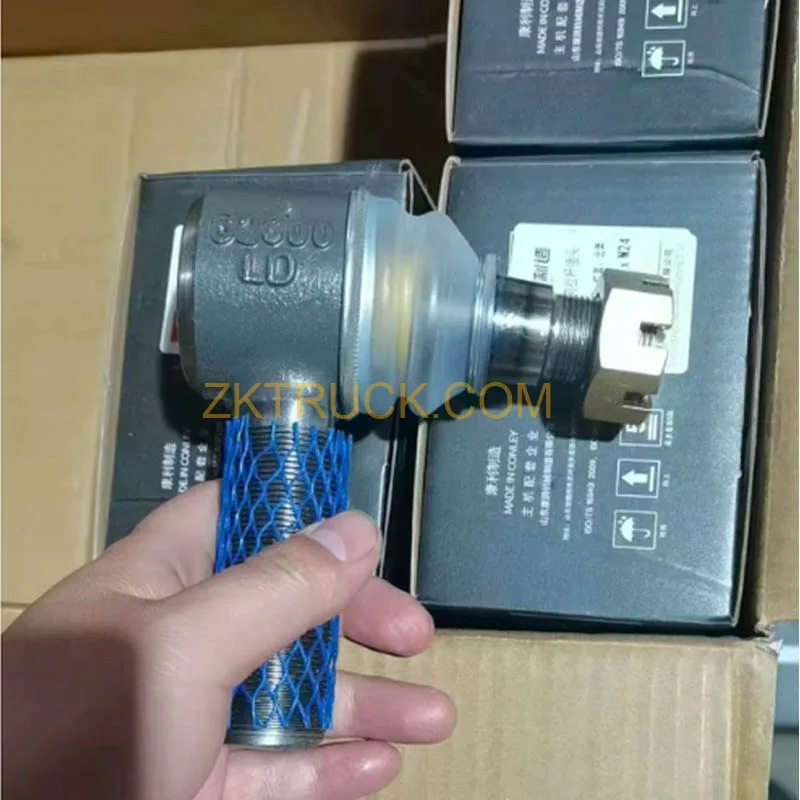

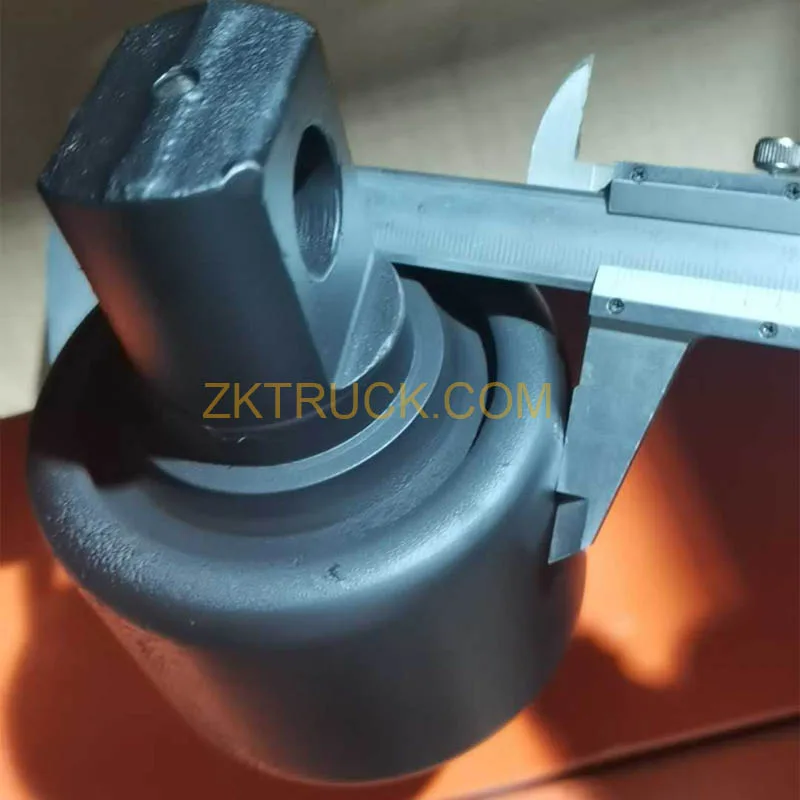

The Conley steering ball joint M30*24*27 is a crucial component in the steering system and suspension system of heavy commercial vehicles. It is mainly used to connect the steering pull rod and the steering knuckle, ensuring the flexibility and stability of the vehicle’s steering. Here is a detailed introduction about the heavy-duty pull rod ball joint:
The working principle and key components of the Conley steering ball joint:
The heavy truck steering ball joint can connect the suspension and the balance rod joint parts, transmitting the forces of the suspension and the balance rod. When the car turns, it bears the steering force of the wheels and transmits it to the steering mechanism, ensuring the accuracy of wheel steering. At the same time, it can also reduce vehicle vibration, making the vehicle drive more smoothly and improving comfort. Moreover, by adjusting its position, it can change the wheel angle, thereby adjusting the driving direction and steering force, and adapting to different road conditions and driving needs.
- Ball head housing: Contains the ball head and provides protection.
- Ball head pin: Connects the steering tie rod and the steering knuckle, allowing for rotation in multiple directions.
- Ball head seat: Contacts the ball head, reduces friction and withstands loads.
- Roll pins or elastic rubber ball seats: Used for buffering and reducing wear, some designs employ roll pin bearings or rubber materials to enhance durability.
- Dust cover: Prevents dust and moisture from entering, prolonging the lifespan of the ball head.
Material selection for the Conley steering ball joint:
High-strength steel is commonly used, such as 40CR alloy steel, which has excellent strength and wear resistance. For some high-end or lightweight-demanding lever ball heads, aluminum alloys, carbon fiber composite materials, etc. are used. This helps to reduce weight while ensuring performance. Some also use engineering plastics, such as PA66, POM, etc., for components like ball head covers, which have good impact resistance and dimensional stability.
Common Faults and Inspection of Conley steering ball joint:
- Damage to the steering rod ball joint may cause abnormal noises during steering. If the bushing becomes aged and worn, similar noises will also occur. Additionally, problems such as inaccurate steering, increased steering wheel deflection, and vehicle veering may arise, which can affect driving safety.
- Increased clearance due to wear: manifested as increased free play of the steering wheel, abnormal noises during steering, or irregular tire wear.
- Damaged dust cover: will cause lubricating oil leakage, accelerating the wear of the ball joint.
- Inspection Method: Lift the vehicle and shake the wheels by hand to check for any looseness. Observe whether the dust cover is damaged or leaking oil.
Replacement steps for the heavy truck steering ball joint:
Replacing the heavy truck steering ball joint usually requires professional tools. It is recommended to do this at a repair shop. The basic steps are as follows:
- 1. Remove the tire and expose the steering tie rod ball head.
- 2. Loosen the fixing nut and use a dedicated ball head removal tool (such as the European version ball head removal tool) to separate the ball head.
- 3. Record the number of turns the original ball head was inserted and ensure that the length of the new ball head is consistent when installing it to avoid affecting the front toe adjustment.
- 4. Install the new ball head and tighten the fixing bolts according to the specified torque.
- 5. Adjust the front toe to ensure the correct wheel alignment.
Conley steering ball joint Maintenance Tips:
- Regularly inspect the dust cover. Check for any cracks every 3 months or during maintenance.
- Avoid impact driving and minimize sudden turns or pressing on the shoulder.
- Perform regular four-wheel alignment every 20,000 kilometers or after replacing the steering components.
If you need to purchase or replace the heavy truck steering ball joint, it is recommended to provide the vehicle’s VIN code to ensure the correct model is matched.
