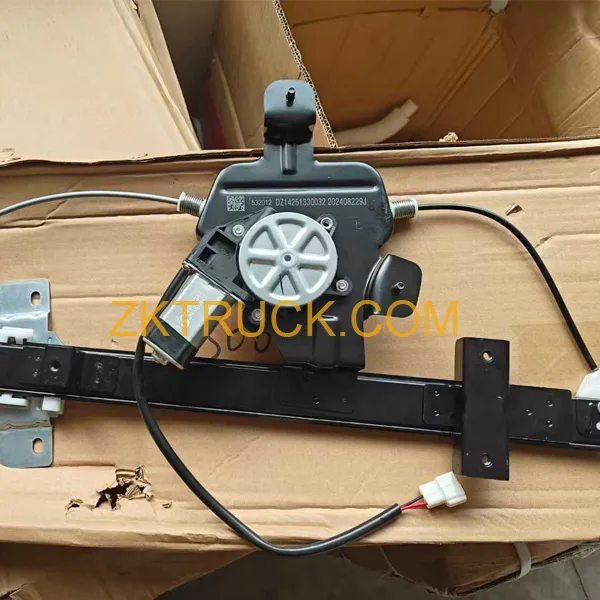

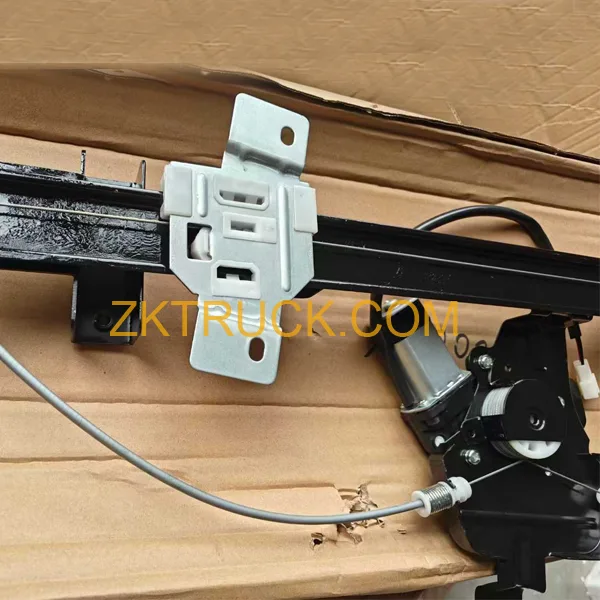

SHACMAN X3000 Window glass lift DZ14251330032

Description

Installation location of SHACMAN X3000 glass lift DZ14251330032:

The glass lift DZ14251330032 is the glass control device for SHACMAN X3000 heavy truck. It is mainly installed inside the left and right doors of the cab system, and its main function is to control the lifting and lowering of the truck door window glass.

The working principle of the glass lift DZ14251330032:

After the power is connected, the current passes through the fuse. When the ignition switch is turned on, the current will branch into the glass lift switches for the main driver and the co-driver. When the glass lift switch of the main driver or the co-driver is operated, the current will enter the corresponding motor according to the position of the switch (up or down). The motor drives the mechanical device of the glass lift DZ16251330810, causing the glass to rise or fall along the guide rail, thereby achieving the up and down movement of the window glass.

The components of the SHACMAN X3000 glass lift DZ14251330032 are as follows:

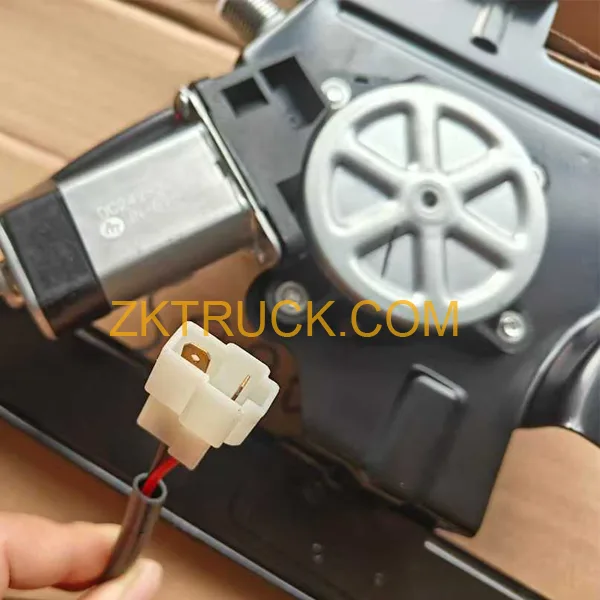

1. Motor: This is the core component of the lifter, providing power for the glass to rise and fall. It rotates to drive the steel wire rope or gear and other transmission devices, enabling the glass to move up and down.
2. Transmission device: Common types include steel wire rope type and gear rack type. The steel wire rope type transmission device is driven by the motor to move the steel wire rope, allowing the glass to move along the guide rail; the gear rack type uses the motor to drive the gear, which meshes with the teeth fixed on the door to achieve the lifting and lowering of the glass. .
3. Glass guide rail: It is used to guide the vertical movement of the glass, ensuring that the glass rises and falls smoothly and preventing it from shaking or shifting. The guide rail is usually installed inside the car door and comes into contact with the edge of the glass, providing support and guidance.
4. Control switches: They include the driver’s side control switch and the passenger’s side control switch, among others, and are used to control the rising, falling, and stopping of the glass. The driver’s side control switch usually also has buttons for controlling the vertical movement of other car door glasses and locking the vertical movement of other car door glasses.

Common faults and solutions for the glass lift DZ14251330032:

1. Power issue: If the battery is low, it will affect the operation of the electric glass. Try charging the vehicle and check the battery and related wiring connections to ensure normal power supply.
2. Switch problem: Damaged or poorly connected switches will cause the glass to fail to rise or lower. Use a multimeter to test the continuity of the switch. If the switch is faulty, replace the glass lift switch.
3. Motor problem: Motor failure or damage will prevent the glass from rising or lowering. Measure the resistance of the motor or directly power it on to determine if the motor is normal. If the motor is damaged, replace it with a motor of the same model.
4. Wiring problem: Broken, short-circuited, or poorly connected wiring between the switch and the motor will affect the normal operation of the glass lift mechanism. Check for any damage, aging, or breakage in the wiring, and repair or replace the damaged wiring.
5. Glass guide rail problem: Foreign objects, dirt, or deformed guide rails in the guide rail will cause difficulties or jamming in the glass lift. Clean the foreign objects and dirt in the guide rail, and apply an appropriate amount of lubricating oil. If the guide rail is severely deformed, replace it.
