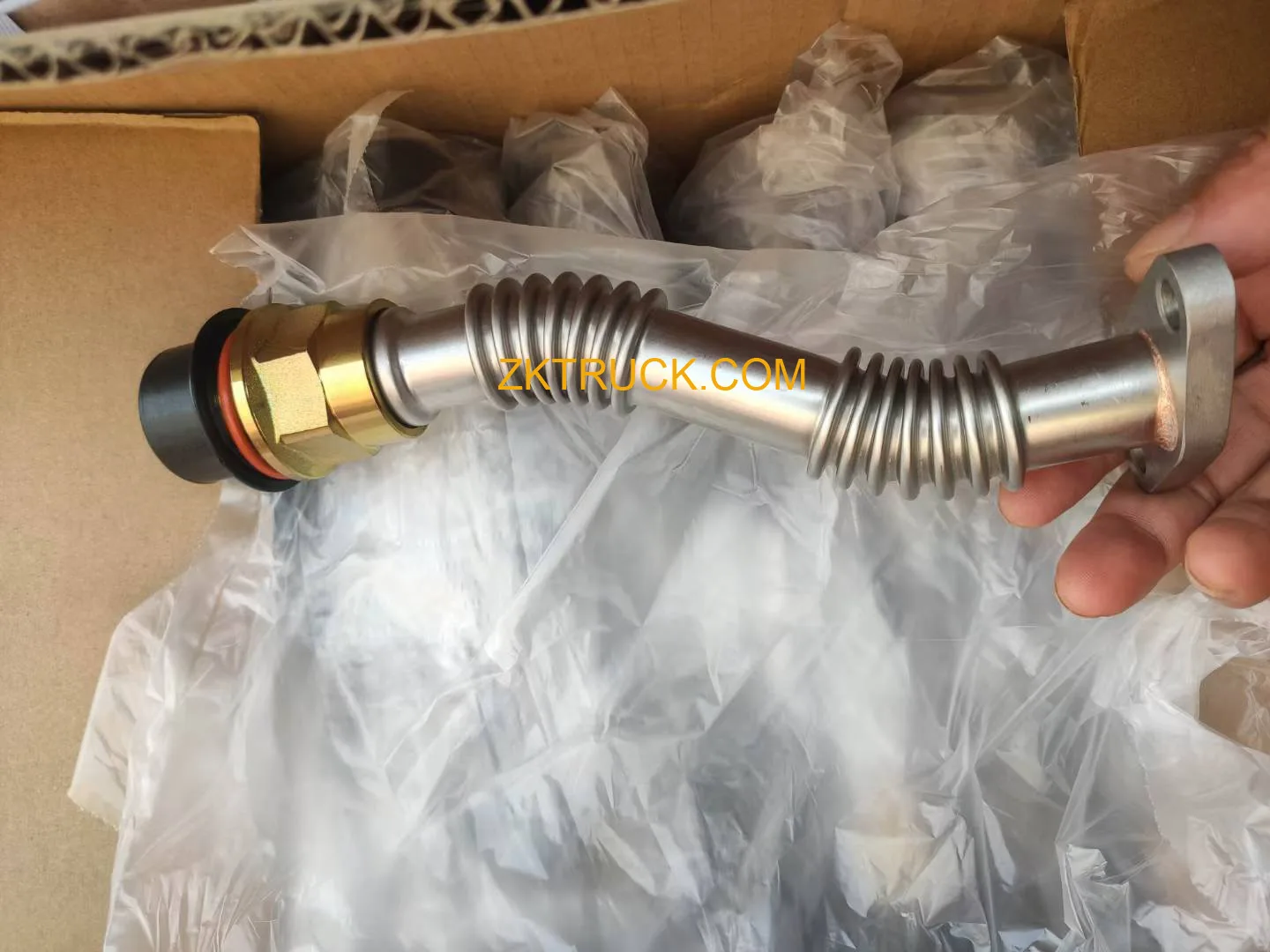

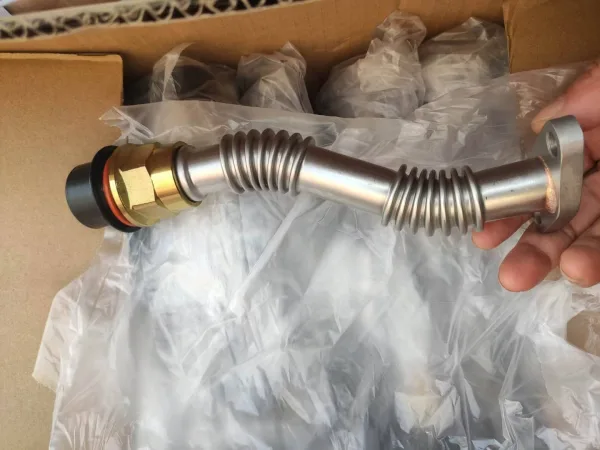

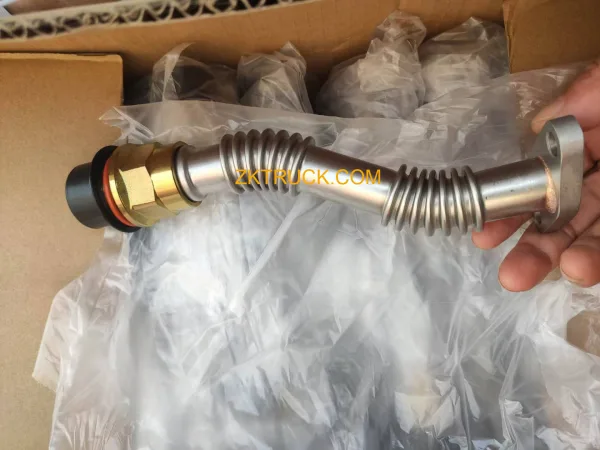

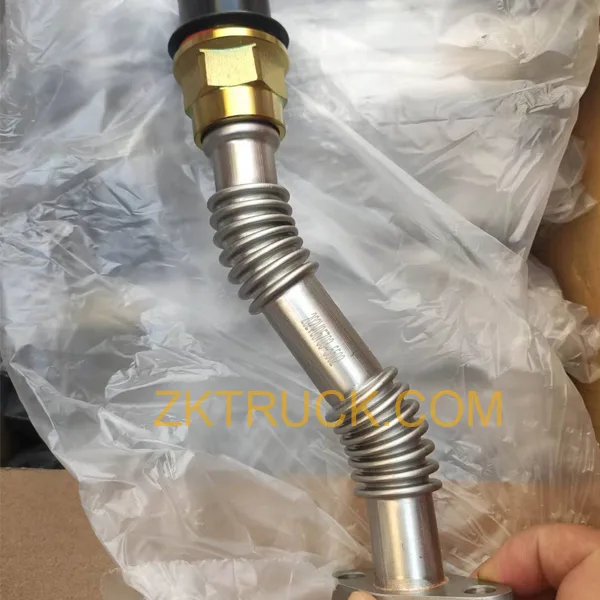

SINOTRUK MAN Turbo oil return line 202V05703-5502

Description

What is Turbo oil return line 202V05703-5502?

The Turbo oil return line is a crucial component in the lubrication system of heavy-duty turbochargers. Its core function is to ensure that the lubricating oil, after completing the cooling and lubrication processes, can safely and smoothly return from the turbocharger to the engine oil pan, thereby maintaining the circulation of the entire lubrication system.

When the turbocharger is operating, the bearings and other components need to be cooled and lubricated by lubricating oil. The function of the return oil pipe is to draw the used lubricating oil from the turbocharger back to the engine oil pan, forming a complete lubrication cycle. If the return oil is not smooth, it will cause the accumulation of engine oil in the turbocharger and an increase in pressure, leading to problems such as oil seal leakage and overheating and damage of the bearings, which will directly affect the lifespan of the turbocharger and even affect the performance of the engine.

Structure and material of the Turbo oil return line 202V05703-5502:

Structure composition: It is composed of the turbocharger return oil port, rubber hose, metal pipe, one-way valve, etc. The return oil port is located at the bottom of the bearing shells of the turbine end and the compressor end, and is sealed by an O-ring; the rubber hose is generally made of high-temperature resistant fluororubber, which has good flexibility and corrosion resistance, with an inner diameter of usually 8-10mm, and the length varies according to the vehicle model and installation position; the metal pipe is used to connect the rubber hose and the engine cylinder block, and its surface is generally treated with anti-corrosion measures such as galvanization; the one-way valve is installed on the return oil pipe to prevent the reverse flow of engine oil.

Material characteristics: Besides the material characteristics of the rubber hose and metal pipe mentioned above, the flange parts of the return oil pipe and other connection components are generally made of metal, which has high strength and sealing performance, and can withstand the pressure and vibration of the turbocharger during operation.

Working environment and causes of failure of the turbocharger oil pipe 202V05703-5502:

• High temperature: The turbocharger operates at temperatures above 600C, and the return oil pipe needs to withstand the radiant heat from the exhaust gas and the high temperature of the lubricating oil to avoid aging of the rubber hose and deformation of the metal pipe.
• High pressure: The internal lubricating oil pressure of the turbocharger needs to be released through the return oil pipe. If the pipe is clogged or deformed, it will cause an imbalance in the internal pressure.
• Vibration: During vehicle operation, the turbocharger vibrates at high frequencies with the engine, and the return oil pipe needs to remain firmly fixed to avoid loosening of the interface or rupture of the pipe due to shaking.

1. Carbon deposits and oil sludge accumulation: Over a long period of use, impurities in the lubricating oil, carbon deposits, and residues from engine combustion will gradually accumulate on the inner wall of the return oil pipe, causing it to narrow or even become clogged.
2. Oil deterioration: If the heavy-duty truck uses poor-quality engine oil or does not replace it for a long time, the oil will oxidize and deteriorate, generating gelatinous substances and sediment, which will block the return oil pipe.
3. Aging of sealing components: The sealing rings, gaskets, etc. of the return oil pipe are prone to aging, hardening, or damage in the long-term high-temperature and vibration environment, losing their sealing performance, and causing oil leakage.

How to maintain and service the turbocharger oil pipe 202V05703-5502?

• Regular inspection: During each vehicle maintenance, the return oil pipe of the turbocharger should be visually inspected to check for signs of deformation, damage, leakage, etc., and check if the bolts and nuts at the connection points are loose, and also check if there is carbon deposits, oil sludge, etc. accumulated in the return oil pipe.
• Cleaning and maintenance: Regularly use compressed air or dedicated cleaning agents to clean the return oil pipe to remove carbon deposits and dirt. For severely clogged return oil pipes, they can be disassembled for soaking cleaning or using professional tools for unclogging.
• Replacement of components: If the rubber hose of the return oil pipe is aged， cracked， the metal pipe is corroded or deformed, or the sealing components are damaged,corresponding components should be replaced in time. Also, if the one-way valve is stuck, sealed improperly, etc. it also needs to be replaced.
• Precautions: When installing the return oil pipe, ensure that the pipe connection is firm, the sealing components are installed correctly and avoid loosening and leakage. In addition, choose qualified lubricating oil and replace the engine oil according to the requirements of the vehicle manual to ensure the cleanliness and performance of the lubricating oil and reduce the occurrence of return oil pipe failures.

The return oil pipe of the turbocharger may seem insignificant, but it is the “lifeline” that keeps the turbocharger functioning properly. By establishing an oil circulation channel, it balances the internal pressure of the turbocharger and prevents component damage caused by lubrication failure. During daily maintenance, the sealing performance, smoothness, and anti-aging ability of this pipe should be given particular attention to ensure the reliability of the heavy-duty truck power system.
