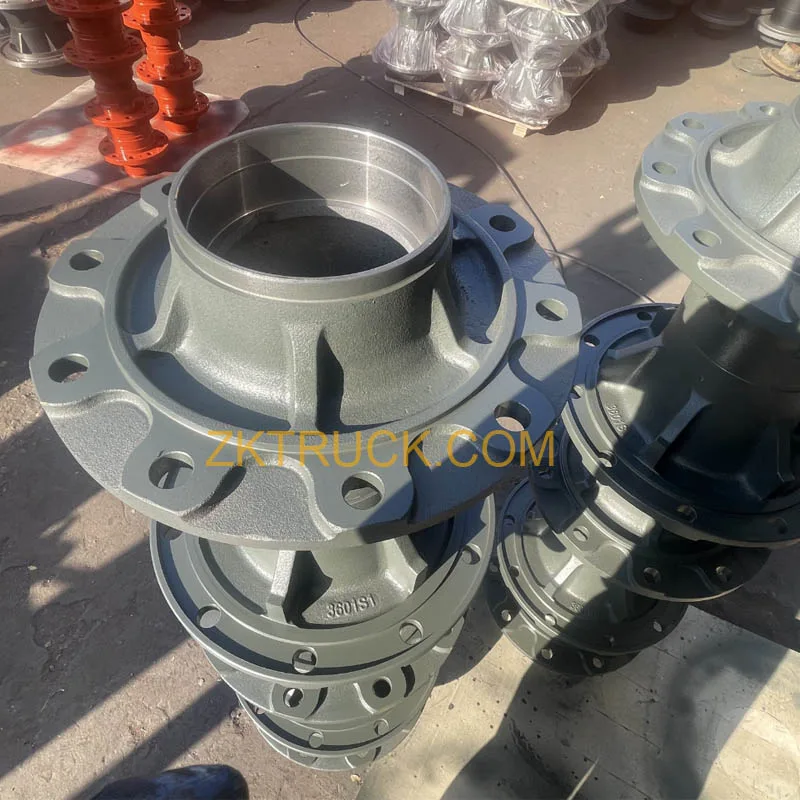

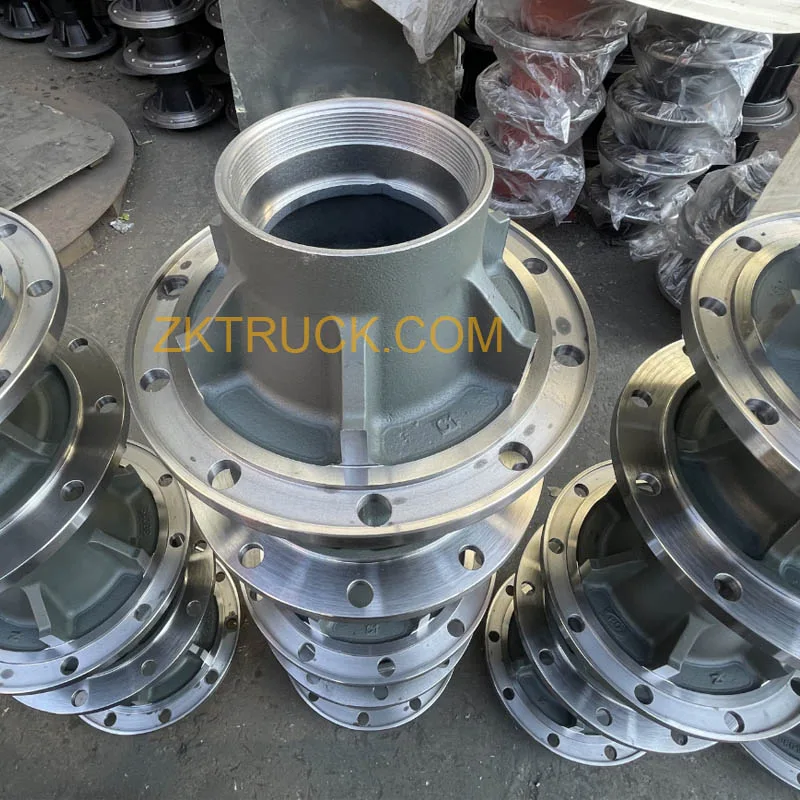

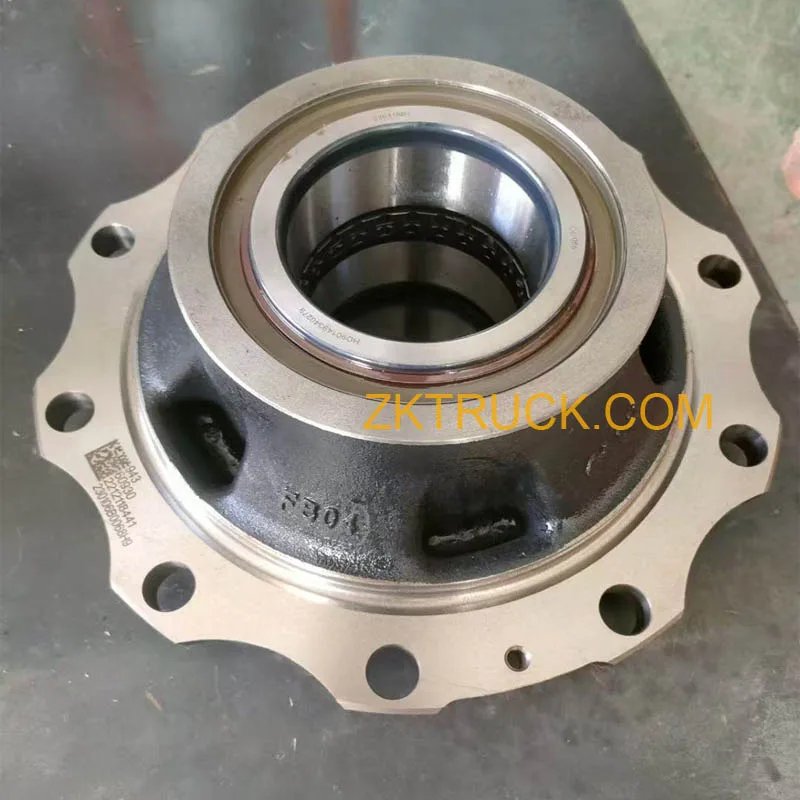

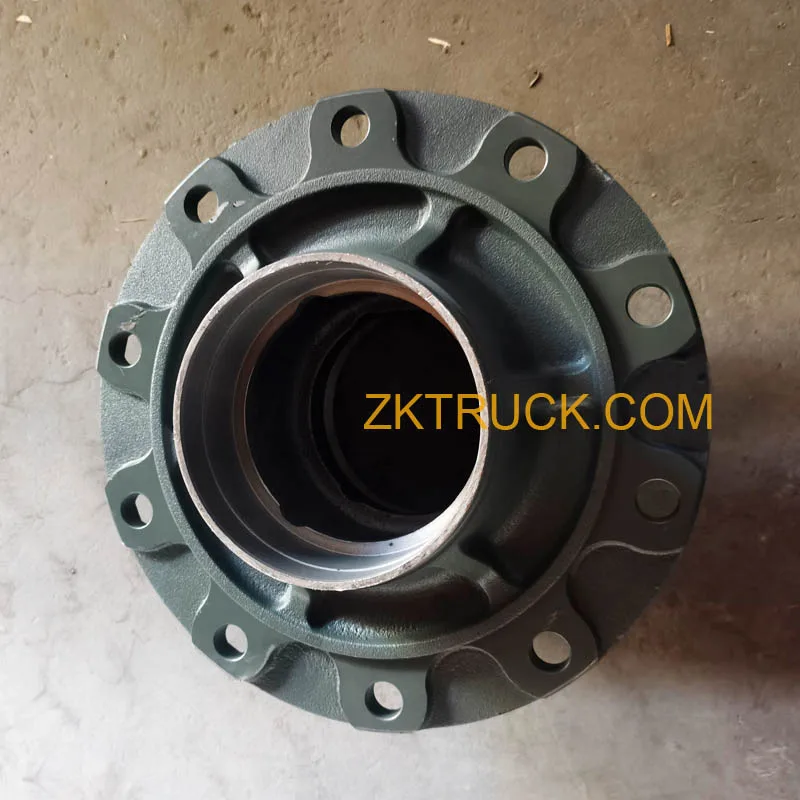

HOWO SEMI TRAILER FUWA 16T rear wheel hub

Description

HOWO SEMI trailer FUWA 16T Rear Wheel Hub introduction:

The SEMI trailer FUWA 16T Rear Wheel Hub is installed at both ends of the SEMI trailer’s rear axle. In the SEMI trailer’s operation system, the rear wheel hub, as one of the key components, directly affects the driving safety and stability of the vehicle. The FUWA SEMI trailer rear wheel hub is widely applicable to various semi trailers, full trailers, etc., and is an important product that matches the 16T rear axle system. In the following, we will deeply understand the specifications, parameters, material characteristics, as well as the replacement and maintenance key points of the FUWA 16T Rear Wheel Hub.

Specification parameters of the FUWA 16T Rear Wheel Hub:

1. Diameter: Under normal circumstances, the diameter of the rear hubwheelis approximately 420mm. This size is precisely designed and verified through extensive practice, ensuring the truck’s carrying capacity while meeting the driving requirements in various road conditions and guaranteeing the smoothness of vehicle operation.
2. Number and specification of bolt holes: Generally, it is designed with 10 bolt holes, and the common bolt specifications are M20 or M22. This combination of bolt hole number and specification can provide sufficient tightening force, firmly installing the hub on the vehicle bridge and preventing loosening or detachment during vehicle operation.
3. PCD value: That is, the pitch circle diameter of the hub bolt holes. It is generally 335mm. PCD value is an important parameter for measuring the distribution of hub bolt holes. An accurate PCD value can ensure that the hub is perfectly aligned with the bolt holes of the vehicle bridge during installation, guaranteeing the installation accuracy and stability.

Material of the SEMI trailer FUWA 16T Rear Wheel Hub:

Material: The SEMI trailer FUWA 16T Rear Wheel Hub is mostly made of high-quality cast iron or steel, such as ductile iron. Ductile iron has high strength and toughness, which enables the hub to withstand various stresses and impacts from the road surface during vehicle operation. Whether driving on a smooth highway or experiencing bumps on a rough mountain road, the hub can maintain good structural integrity and provide a solid guarantee for the safe operation of the vehicle.

Surface treatment: To further enhance the service life and appearance quality of the hub, it is usually treated with surface treatment processes such as painting and electroplating. Painting treatment can form a protective film on the hub surface, effectively preventing rust and corrosion; electroplating not only enhances the anti-rust performance but also makes the surface of the hub smoother and more beautiful. These surface treatment processes not only extend the service life of the hub but also improve the overall image of the vehicle.

Replacement and maintenance of SEMI trailer FUWA 16T Rear Wheel Hub:

1. Regular inspection: During vehicle operation, it is necessary to regularly check the wear condition of the hub, the tightness of the bolts, and any defects such as cracks. If any problems are found, they should be dealt with or replaced in time.
2. Correct installation: When replacing the hub, ensure the installation accuracy of the hub and the vehicle bridge, and tighten the bolts according to the specified torque to avoid hub loosening or damage due to improper installation.
3. Keep clean: Regularly keep the hub clean to avoid oil stains, dirt, etc. adhering to the hub surface, which affects its heat dissipation and appearance, and also helps to promptly detect problems with the hub.

The 16T wheel hub assembly of FUWA axle is an essential component of the trailer. The accuracy of its specifications, the quality of its materials, and the reasonable measures for replacement and maintenance are of great significance for ensuring the safe driving of the vehicle and prolonging the service life of the hub. Users of trailers should fully understand and attach importance to these aspects to ensure that the hub is always in good working condition and to safeguard the safe operation of the trailer.
