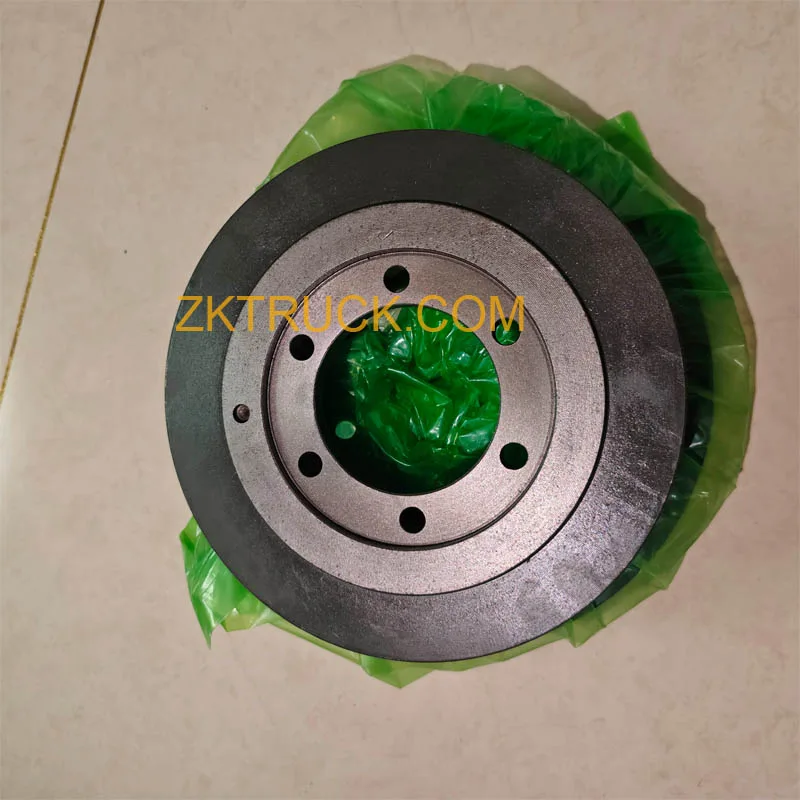

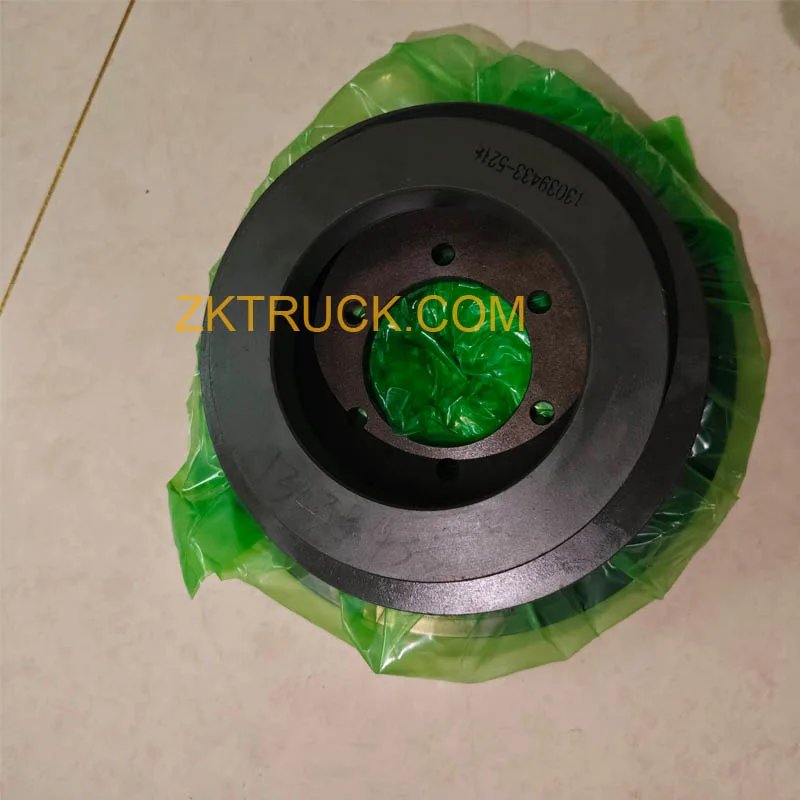

WEICHAI Crankshaft Belt Pulley 3039433 100% original

Description

The structure of Crankshaft Belt Pulley 3039433:

• Pulley Hub: The part that connects the belt pulley 3039433 to the crankshaft. It is usually connected to the crankshaft tightly through connecting components such as keys and bolts to ensure the effective transmission of power.
• Spokes: The part connecting the hub and the rim. It serves to support and transfer force. The shape and number of spokes vary depending on the design and purpose of the belt pulley. Common types include spoke style and plate style.
• Rim: The part in contact with the belt. The surface is usually treated specially to increase the friction with the belt, ensuring that the belt does not slip during rotation. The shape and size of the rim are designed according to the type of belt used.

The Types of Belt Pulley 3039433:

1. Single-slot Belt Pulley: There is only one belt slot on the rim, suitable for some simple engine systems, only requiring the drive of one accessory, such as a generator, water pump, etc.
2. Double-slot Belt Pulley: There are two belt slots, capable of simultaneously driving two different accessories, improving the integration and compactness of the front wheel system of the engine.

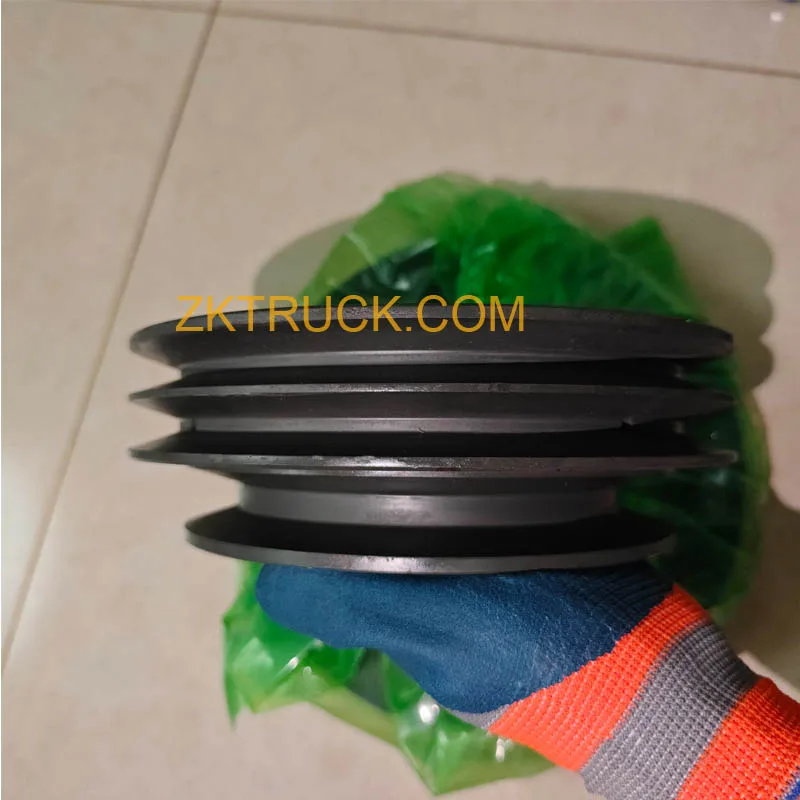

3. Triple-slot Belt Pulley: It has three belt slots, capable of simultaneously driving more accessories, such as air conditioning compressors, power steering pumps, etc., commonly used in some large engines with a higher demand for accessory drives.

Crankshaft belt pulley 3039433 functions and purposes:

• Power transmission: Transmits the rotational power from the engine crankshaft to various accessories, such as generators, water pumps, air conditioning compressors, power steering pumps, etc., ensuring that these accessories can operate normally and providing power for the vehicle’s electrical system, cooling system, air conditioning system, etc.
• Speed regulation: By combining belts of different diameters, the speed of the accessories can be changed to meet the requirements of different accessories. For example, the generator needs to operate within a certain speed range to output stable voltage. By reasonably selecting the diameter ratio of the crankshaft belt pulley and the generator belt pulley, the generator can work normally under different engine speeds.
• Shock absorption and noise reduction: During engine operation, the crankshaft generates certain torsional vibrations and noises. The crankshaft belt pulley 3039433 can play a certain role in shock absorption and noise reduction through its structural design and material properties, reducing the impact of vibrations and noises on the engine and the entire vehicle.

Installation and disassembly of crankshaft belt pulley 303943

Installation steps of Belt Pulley 3039433:

1. Preparations: Prepare the necessary tools, such as wrenches, sockets, calipers, etc., as well as materials like WEICHAI engine crankshaft pulley and crankshaft mounting bolts, and ensure that other engine components have been installed and are functioning normally.
2. Placing the pulley: Place the crankshaft pulley on the crankshaft and push it with your hand to check if its freedom is normal. If there is resistance or unsmoothness, it needs to be adjusted.
3. Fixing the bolts: Place the crankshaft pulley and crankshaft mounting bolts together on the crankshaft, and initially fix the bolts using a socket and wrench.
4. Tightening the bolts: Determine if the tightening force is correct, measure the length of the bolts with a caliper, and ensure that it meets the specified requirements. Then, use a wrench to tighten the bolts.
5. Checking and testing: Conduct the final check to ensure that the crankshaft pulley is correctly fixed and has normal freedom. Then, test the engine to ensure it can start and run normally.

Disassembly steps of Belt Pulley 3039433:

1. Preparation and Shutdown: Prepare tools such as wrenches, screwdrivers, etc., ensure the engine is in a shutdown state and has cooled down to room temperature, conduct a comprehensive inspection of the engine to ensure there are no other faults or problems.
2. Removing the fixing screws: Use wrenches and screwdrivers, etc., to remove the fixing screws on the pulley, and remove the pulley from the crankshaft.
3. Inspection and Cleaning: Check the wear of the pulley, if the wear is severe or damaged, it needs to be replaced in time. At the same time, clean the surface of the pulley and the crankshaft to ensure there is no oil stains or impurities.

Crankshaft Belt Pulley 3039433 Faults and Maintenance

Common faults of Belt Pulley 3039433:

• Abnormal noise: The pulley is worn or loose, causing mechanical friction and generating noise. This is one of the most common fault manifestations.
• Performance decline: A damaged pulley may affect the normal operation of the engine, causing valve spring pins or timing systems to be affected, resulting in reduced vehicle power or even the engine not functioning properly.
• Crankshaft pulley belt breakage: If the camshaft lubrication is poor, the working resistance increases, which may cause the belt to break, and subsequently lead to damage to engine components such as valve spring pins falling off.

Maintenance suggestions of Belt Pulley 3039433:

• Regular inspection: Regularly inspect the appearance of the crankshaft pulley, check for cracks, wear, deformation, etc., and also check the tension and wear degree of the belt. If there are any abnormalities, adjust or replace them in time.
• Maintain cleanliness: Keep the pulley and belt clean, avoid oil stains, dust, etc. from adhering, which will affect power transmission and the service life of the belt.
• Correct installation: When replacing the pulley or belt, ensure the installation is correct, the cooperation accuracy between the pulley and the crankshaft should meet the requirements, and the tension of the belt should be adjusted appropriately.
