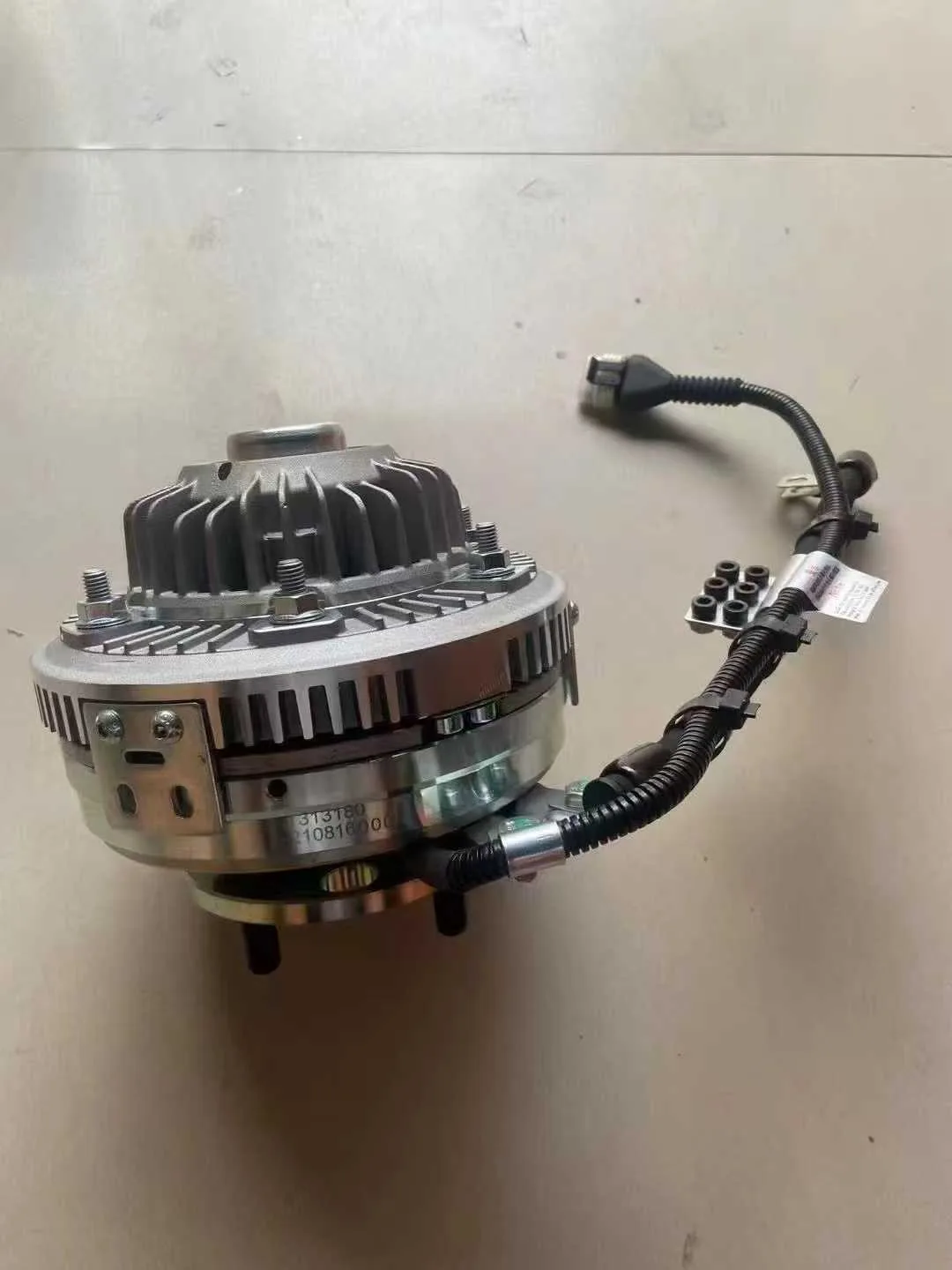

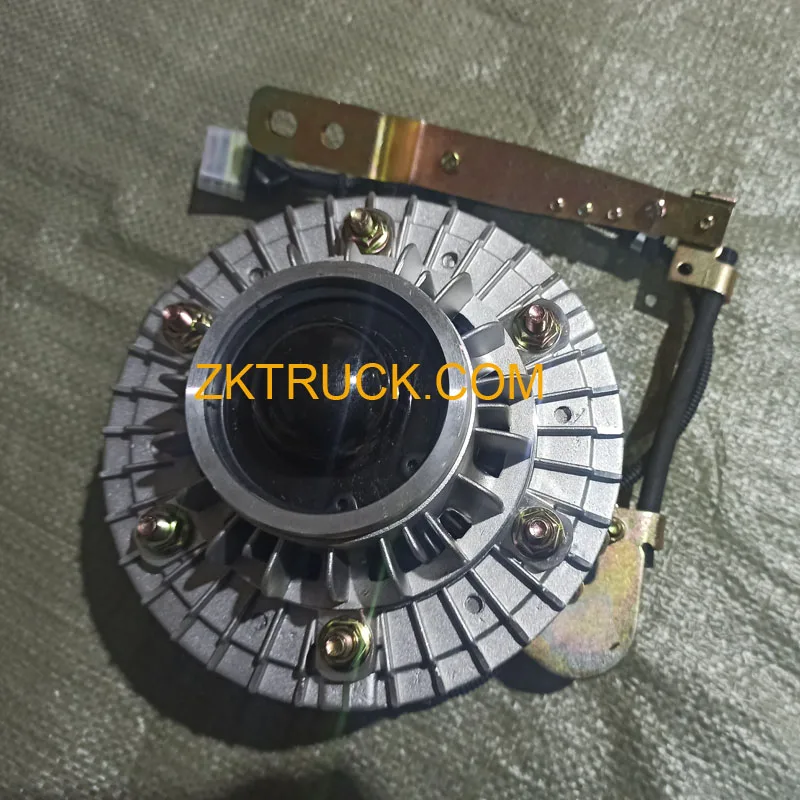

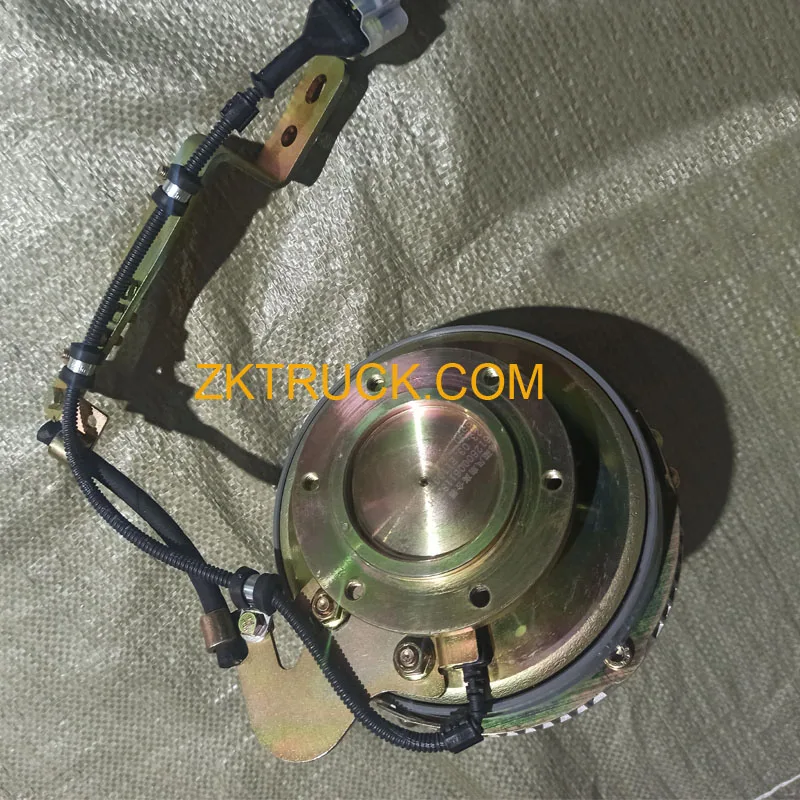

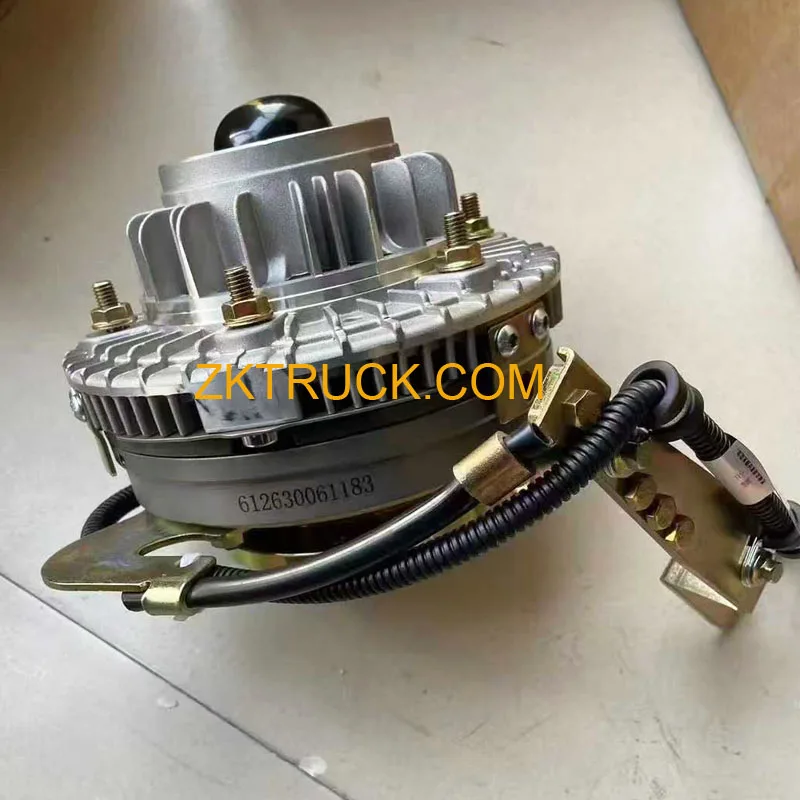

WEICHAI WP12 engine fan clutch 612630061183

Description

WEICHAI WP12 engine fan clutch 612630061183 introduce:

Engine fan clutch 612630061183 is also known as a silicone oil fun clutch. It is the important parts of cooling system. Because the clutch fan is a device that uses silicone oil as the medium and transmits torque through the shear viscosity of the silicone oil. Its main function is to automatically adjust the fan speed according to the working condition of the engine system, thereby effectively controlling the temperature of the engine parts and ensuring its operation within the optimal working temperature range.

Engine fan clutch 612630061183 compatible the truck models:

Engine fan clutch 612630061183 is an electronic control silicone oil fan clutch suitable for SHACMAN truck DeLong F3000, NEW M3000, X3000 and other models use WEICHAI WP12 engine system.

The function of the fan clutch 612630061183:

Clutch fun transmits torque through the shear force of the silicone oil, thereby controlling the speed of the fan. This engine fan clutch can automatically adjust the fan speed according to the temperature of the engine. When the engine temperature is low, the fan speed is lower, reducing power consumption and noise; when the engine temperature rises, the fan speed will increase accordingly to enhance the heat dissipation effect and ensure that the engine operates within the normal temperature range.

How long the service life of engine fan clutch 612630061183:

The service life of the engine fan clutch 612630061183 is not fixed and generally ranges from several thousand to tens of thousands of kilometers. Its actual service life is affected by various factors. The specific details are as follows:

1. Operating environment: High-temperature environments will accelerate the aging of silicone oil, reduce its performance, and also cause the components of the clutch to wear more severely, thereby shortening the service life of the fan clutch. If the vehicle frequently travels in dusty environments, dust may enter the clutch interior, affecting its normal operation and accelerating component wear. 、
2. Frequency of use: The vehicle is frequently used, the engine operates for a long time, and the fan clutch also continuously works, causing the internal silicone oil to circulate continuously and the components to rub against each other, thereby accelerating wear and shortening the lifespan.
3. Maintenance: Regular inspection and maintenance can promptly detect problems with the fan clutch, such as silicone oil leakage, bearing damage, etc. Timely handling can prevent the problems from worsening and extend its service life. If maintenance is not carried out as required, such as not keeping the bimetallic strip clean or not checking the bearing condition, it may lead to clutch failure and shorten the lifespan.
4. Driving habits and road conditions: Unfavorable driving habits such as sudden acceleration, sudden braking, and frequent lane changes will cause frequent changes in engine load and the fan clutch to need to frequently adjust the fan speed, increasing wear. Driving on uneven or congested roads, the engine is prone to overheating, the fan clutch works for a long time and under heavy load, which will also affect the lifespan.

If you encounter a fan clutch failure while driving, you should replace it immediately to ensure that the engine temperature remains normal and that the engine can provide stable power.

As a professional manufacturer deeply engaged in heavy truck parts, ZK truck parts had been concentrating on customizing heavy truck parts for China trucks for decades. ZK truck parts offer professional technical guidance for installation services. We can provide free 7×24-hour service. If you have any questions about the Engine system or WEICHAI engine WP12 spare parts, please do not hesitate to contact us. We can provide the best service for all our customers.
